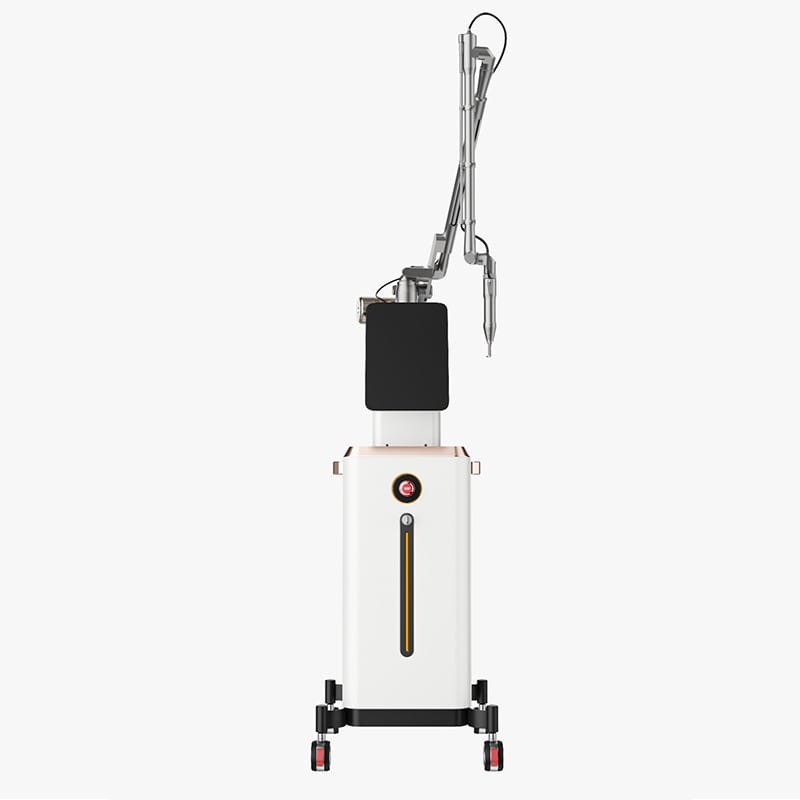

80W Fractional CO₂ Laser System

The 80W Fractional CO₂ Laser is a high-performance, multi-application platform designed for aesthetic dermatology, scar revision, and gynecological rejuvenation. It delivers precision laser energy at 10,600 nm for deep collagen remodeling, skin resurfacing, and soft tissue surgery.

With Fractional, Ultra Pulse, and CW (Continuous Wave) modes, it offers customized treatments for both superficial and deep layers of the skin, while ensuring faster healing and minimal downtime.

🔹 Key Highlights

• ✅ FDA Approved for skin and gynecological procedures

• 💡 80W Output Power for deeper penetration and faster results

• 🧊 Air-Cooled, RF Metal Tube – maintenance-free, 7–10 years lifespan

• 🎯 Spot Sizes from 120µm to 1000µm to target scars, texture, pores, and laxity

• 💼 7 Operation Modes including MIX Mode for layered treatment approaches

• ✳️ Super Pulse Technology – simultaneous precision & deep tissue effect

• 🌪 Built-in Smoke Evacuation System for clinical hygiene and visibility

• 📏 Fractional Scanner with adjustable size, density, and treatment zone

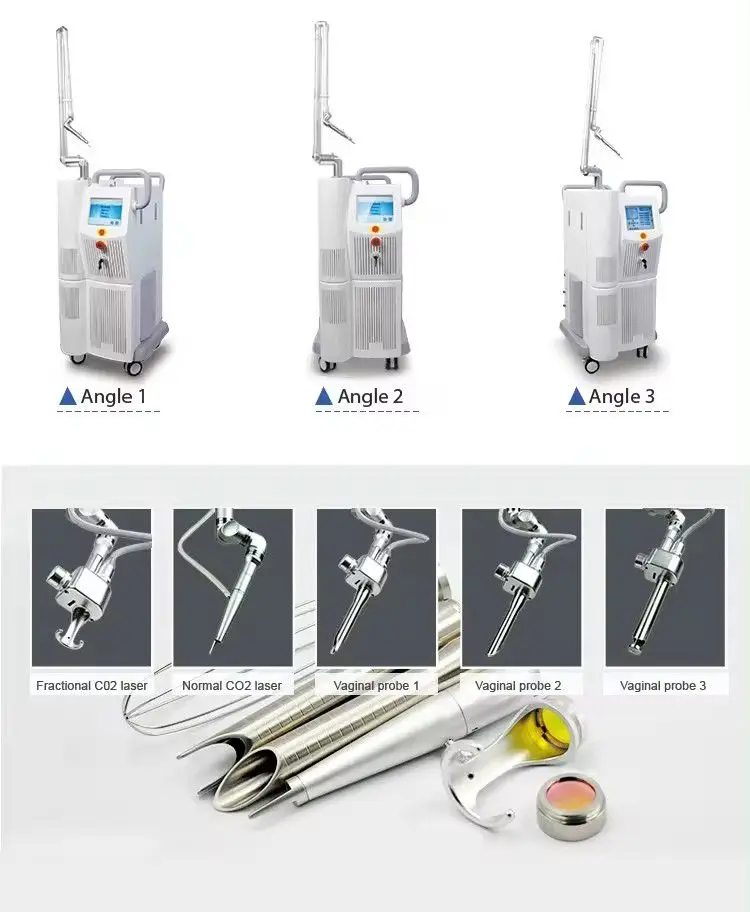

• 🔬 Surgical & Gynecological Handpieces for cutting, tightening, and rejuvenation

• 🔄 360° and 180° Applicators for full-field and directional treatments

Clinical Benefits

• Instant tissue contraction with visible improvement in 7–10 days

• Stimulates collagen & elastin regeneration

• Reduces wrinkles, large pores, scars, and pigmentation

• Treats photoaged, textured, and sagging skin

• Gentle, safe, and effective with minimal thermal damage

• Fast recovery with low risk of hyperpigmentation or side effects

Applications

Dermatology & Aesthetic Use

• Skin tightening and resurfacing

• Fine lines and deep wrinkles

• Acne and surgical scars

• Stretch marks

• Sun damage and hyperpigmentation

• Enlarged pores and rough texture

Gynecology

• Vaginal rejuvenation and tightening

• Vaginal atrophy and dryness

• Postpartum perineal scars

• Stress urinary incontinence

• Vulva reshaping and bleaching

Technical Specifications

• Laser Type: CO₂, 10.6μm ± 0.1μm

• Output Power: 1–80W; 6–192 mJ

• Pulse Duration: 0.1–19.2 ms

• Spot Diameter: ≤0.4 mm

• Cooling: Air cooling system

• Transmission: 7-Joint Articulated Arm

• Power Supply: 220V ± 22V, 50Hz

• Device Weight: 55 kg

• Dimensions: 695 × 550 × 1325 mm
