IC mode (Intraoral Camera mode)

FL mode (Fluorescence mode)

· Disease detection technology using natural fluorescence that occurs under specific illumination.
· The FL mode provides simple ways to detect disease: User will see green fluorescence on normal enamel and red fluorescence where there is bio-film such as plaque or calculus.
· Florescence loss where there is early caries (white spot).
· The FL mode provides the ability to detect early caries, tooth crack, and secondary caries.
· The FL mode is able to detect residual composite resin.
· The FL Mode supports 2 mode types: F mode and S mode.

SPECIFICATION

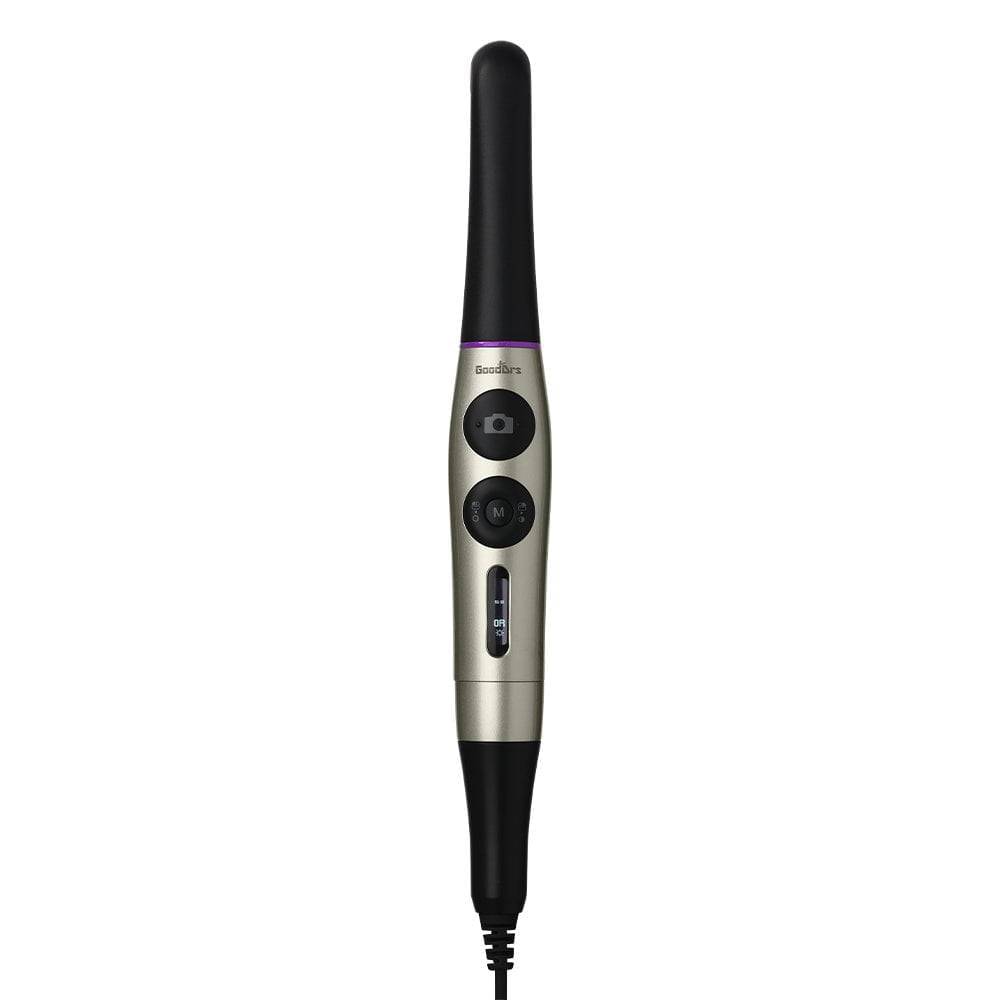

• Model name
  • IC-DCDU75
• Camera
  (included head)
  • Operation voltage5V
  • MeasurementApprox. 202 x 30 x 28 mm
  • WeightApprox. 53g
  • ResolutionFHD (1920 x 1080)
  • Sensor/Lens typeCMOS
• USB cable
  • LengthApprox. 3 M
• Disposable cover
  • DimensionsApprox. 32 x 100 mm
  • QuantityApprox. 100 pcs by weight x 2ea
  • Raw materialPolyethylene

Auto focus Real Autofocus function shows clear images.

Gyro mouse built-in Useable as a mouse.

Software compatibility Support keyboard short-cut data changing program and twain driver,

Adjustable LED brightness Can adjust LED brightness to avoid light reflecting.

FHD image Can get high definition image without distortion.

280˚ twist head Easy to get approach anywhere in oral cavity

OLED screen Bright and clear OLED screen indicates various device status.

3 Color Impressions Can change live image color impression (Original, Warm, Cool)
