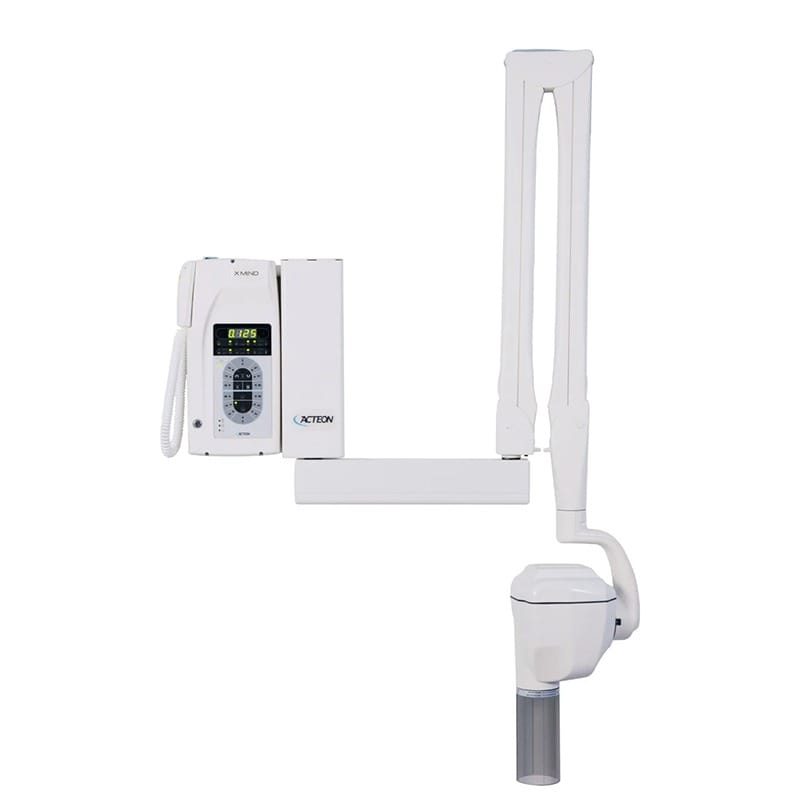

Acteon X-Mind DC Intraoral X-Ray Unit

ACTEON

SKU: AC0301

12,500 AED

Quality, affordability, and warranty: The perfect combination.

Key Features:

✅ High-Frequency DC Technology
Equipped with a Toshiba DG-073B-DC double anode tungsten tube, the X-Mind DC provides constant voltage (60 or 70 kV) and adjustable intensity (4 or 8 mA) for optimal diagnostic imaging, even in challenging conditions.

✅ Ultra-Fast Exposure Times
With exposure times as short as 0.02 seconds, the unit is optimized for digital sensors like CCD, CMOS, and phosphor plates. It reduces exposure by up to 35% compared to monophased units and 50% compared to “E” type films.

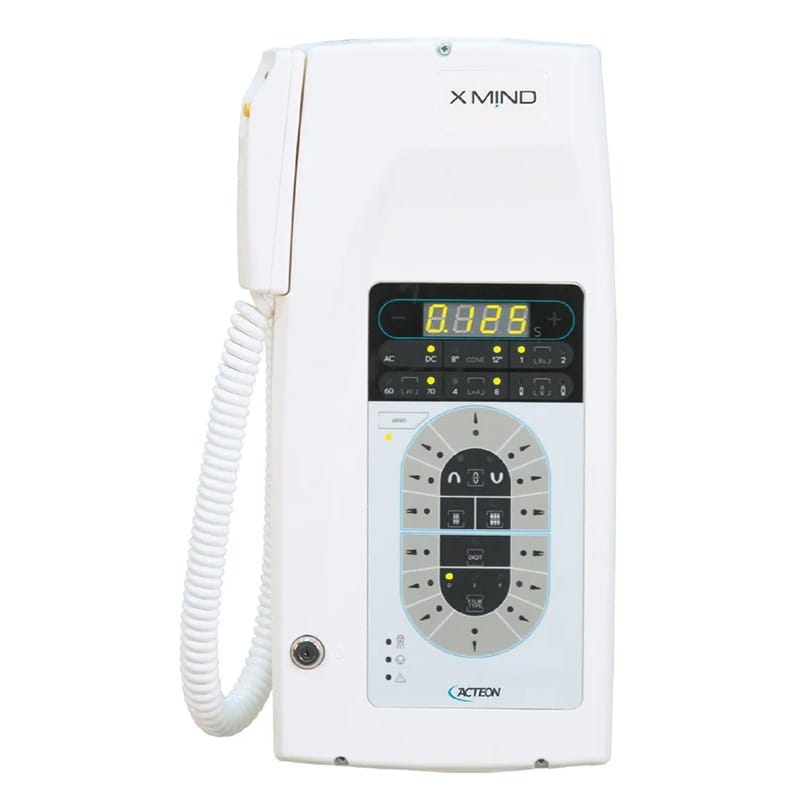

✅ Programmable, User-Friendly Timer
Microprocessor-controlled timer allows custom exposure settings based on sensor type, patient morphology, and tooth type. One timer can manage up to two DC generators, enhancing workflow efficiency.

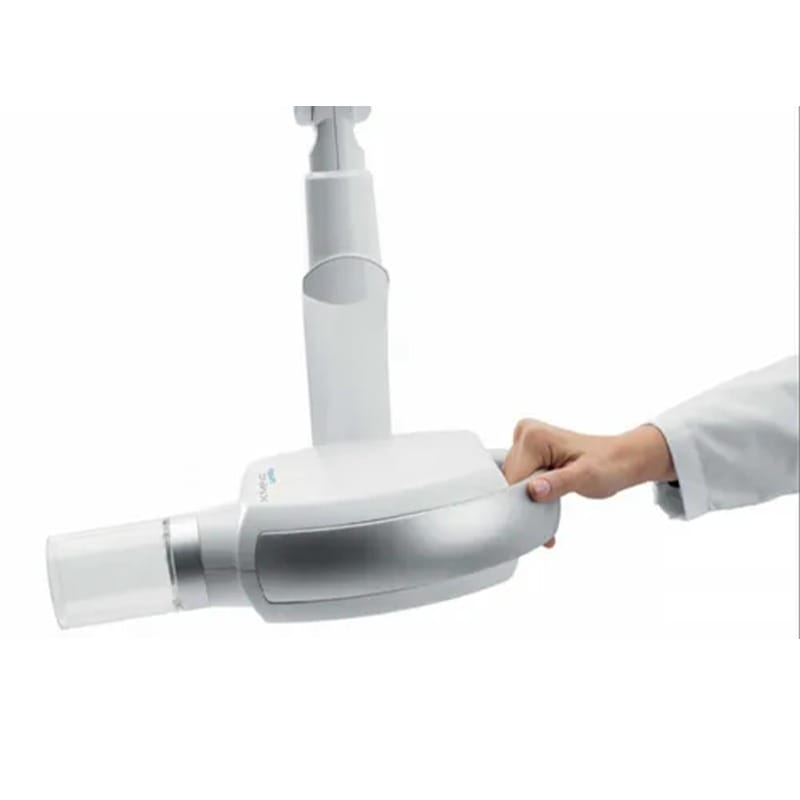

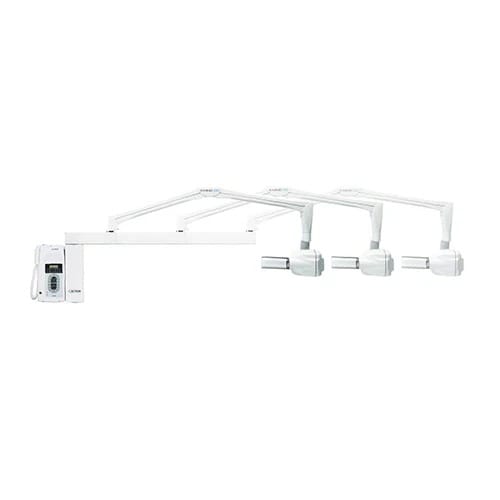

✅ 360° Usability & Compact Design
Smooth 395° rotation around the vertical axis and compact wall-mounted design ensure flexible positioning and space-saving installation.

✅ Superior Image Quality
A 0.4 mm focal spot and adjustable kV/mA settings ensure sharp, high-contrast images for precise diagnostics.

✅ Maximum Safety & Protection
Includes dual lead beam limiters, an expansion chamber, and a long focus-to-skin distance for enhanced radiation protection of both patient and practitioner.

✅ ACE Technology (Available with X-Mind UNITY + SOPIX)
Automatically adjusts radiation exposure based on patient morphology, reducing dose by up to 52%, eliminating overexposure, and avoiding image retakes.

✅ Traceability & Compliance
Post-exposure dose is displayed on the timer and recorded in the SOPRO-Imaging system (when using SOPIX INSIDE sensor), ensuring legal compliance and full patient traceability.
