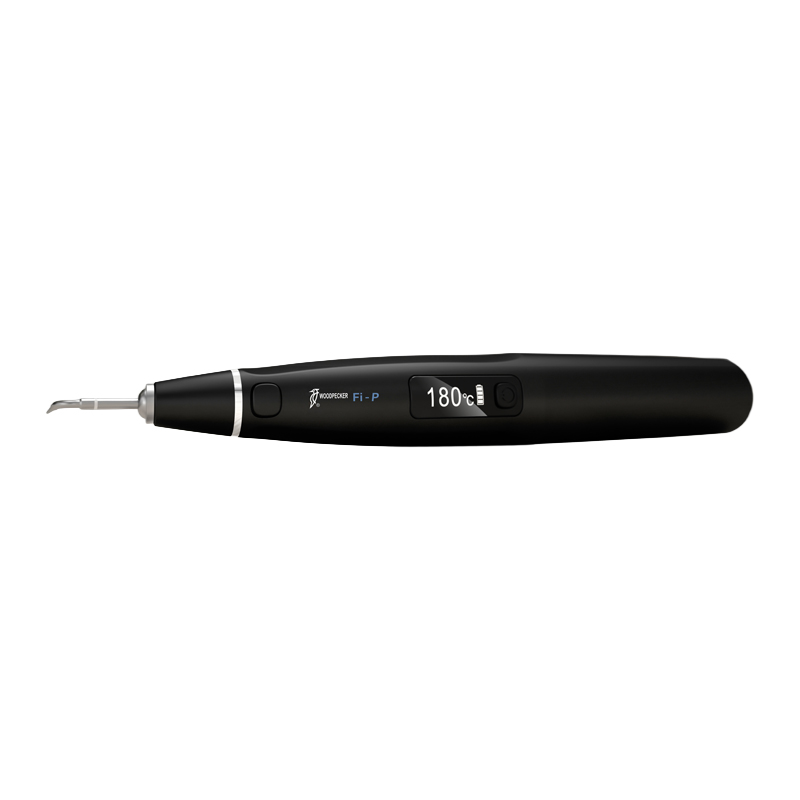

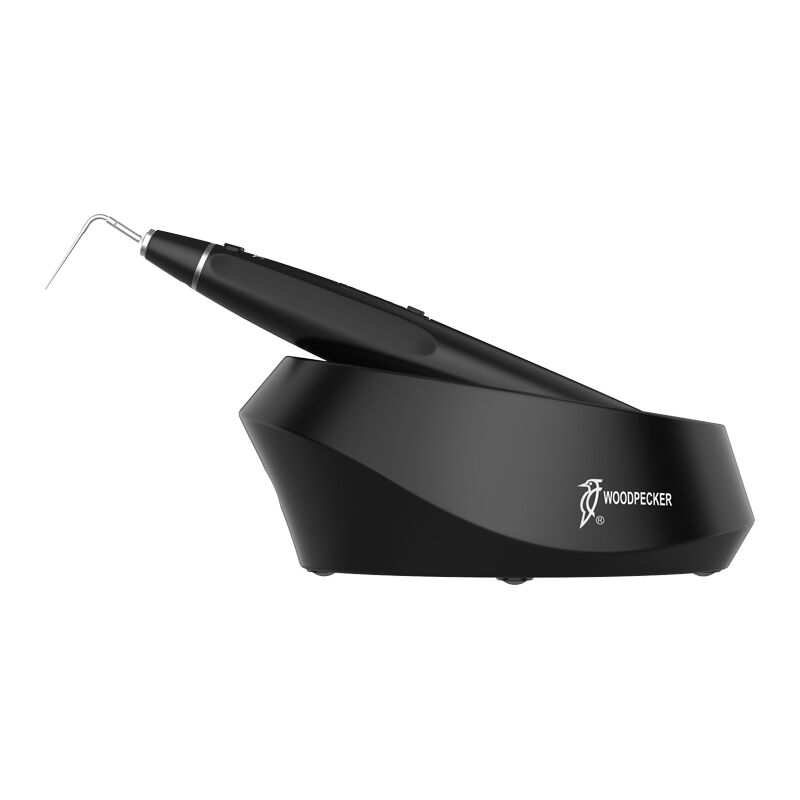

Woodpacker Fi-P Obturation System Gutta-percha Obturation System
364 £
Fi-P
0.2-second fast heating 0.4 mm bendable tip
Fi-P：
· Dimensions (L x W x H):
157 mm x 25 mm x 25 mm (Main unit)
150 mm x 76 mm x 63 mm (Charging base)
· 7 working temperatures: 90°C, 120°C, 150°C, 180°C, 200°C, 230°C, 250°C
· Charging time: About 2.5 h
· Battery capacity: 2000 mAh
· Weight: 80 g (Main unit)
195 g (Charging base)
167 g (Power adapter)
Delivery Option:
In-Stock Items within the UAE: Delivery will take 3-7 working days.
Out of Stock Items: Please contact us to inquire about the estimated delivery time.
International Delivery: For orders outside the UAE, please contact us for an estimated delivery timeline.
Free Returns
0.2 Second Heating Time
High-performance conversion system ensures the efficient cutting.
0.4 mm Bendable Tip
Thinner tips can penetrate deeply into the narrow root canal, providing you a better treatment effect.
High Precision Temperature Control
Constant temperature prevents scalding
7 Working Temperatures
90℃, 120℃, 150℃, 180℃, 200℃, 230℃, 250℃ Suitable for different brands of gutta-percha on the market
4 Hours of Endurance
Large capacity battery & special heating system enable 1500 operations with a full charge.
Quick Heating Within 15 Seconds
Reduce time for waiting and increase your working efficiency.
Prevent Gutta-percha Leakage 360° Rotatable Needle
Optimized structure, 360° uniform rotation, effectively avoiding gutta-percha leakage
Pushing Ram with Anti-Return Structure
Mechanical-locking structure, effectively preventing the pushing ram from returning and avoiding the generation of cavities and bubbles
Type & Diameter & Taper
Type & Size & Length
0.5 mm Injection Needle
Easy to reach the apical 3 mm of the canal for better filling effect
01 & 02
01: Select an appropriate master gutta-percha cone according to the prepared root canal. 02: Select a suitable tip for the Obturation Pen. Insert the tip into the root canal and keep it 3–5 mm away from the apical foramen. Use a rubber stop to mark the working length. Meanwhile, select a plugger of the same size.
03 & 04
03: Coat the master cone with sealer and insert it into the root canal. 04: Insert the tip of the Obturation Pen into the root canal. Press the heating button to cut off the excess gutta-percha and take it out.
05 & 06
05: Insert the tip into the root canal and press the heating button. Advance the tip to soften the gutta-percha until it reaches a point 3–5 mm away from the apical foramen. 06: Release the heating button to stop heating, while keeping pressure on the gutta-percha in the canal with the tip for about 10 s.
07 & 08
07: Press the heating button for about 1 s, then quickly take out the remaining gutta-percha 3–5 mm from the apical foramen. 08: Use a plugger to compact the gutta-percha in the root canal.
09 & 10
09: Place the needle of the Obturation Gun onto the surface of the gutta-percha in the root canal and keep it there for about 3 s to soften the gutta-percha. 10: Inject heated gutta-percha into the root canal while gradually withdrawing the needle. Do not fill the root canal completely in a single injection. It is recommended to fill in three increments, and each injection should not exceed 4 mm.
11 & 12
11: Use a plugger to compact the injected gutta-percha in the root canal. 12: Repeat Steps 9–11 until the root canal is completely filled.
Standard Configuration & Optional
| Brand | Woodpecker |
|---|
